Vibratory Motors

STAR TRACE Vibratory motors are Robust, Reliable, High Loadable Quiet Running and require no maintenance.

STAR TRACE Vibratory Motors are totally enclosed 3Phase, Squirrel cage induction motors with adjustable, eccentric weights mounted at both the ends of the shaft, to set up vibrations during rotation. The design of shaft and the selection of bearings has been carefully done to withstand heavy radial loads.

APPLICATIONS

These motors are used in various material handling equipment’s such as vibrating screens, conveyors, and feeder. They are also used on hoppers, silos to prevent congestion of material flow. Foundry shake – outs and compacting machines use these motors for fast and efficient operation.

  • vibratory motors
THEIR SPECIAL ESSENTIAL CHARACTERISTICS ARE
  • Generously dimensioned cylindrical roller bearing, self lubricating maintenance – free, long life expectancy.
  • Embedded in high –quality impregnating resin vibration –proof winding, insensitivity to damp and dust.
  • Dust –tight and Water –tight through a sealing covering with special circular rubber washer.
  • Reliable starting by means of a high –powered starting torque.
  • Quality –tested components, each motor tested under load.
  • Permanent and well legible setting marketing of the unbalanced weights. One of Two lifting lugs.
  • Vibration – proof joining through the considerable Tensility of the mounting screws.
  • Absolutely secure centrifugal mounting.
  • Universal mounting facilities through an optimum choice of inter spacing in the base mounting.
SALIENT FEATURES
  • Enhanced Reliability & low maintenance .
  • Increased Efficiency.
  • Rugged construction for tough environment.
TECHNICAL DATA
Centrifugal Force Range From 42 to 14250 N
Operating torque range From 3.6 to 3600 Kgs.
Working weight range From 1 to 6000Kgs
Power connection From 3 phase current with 50hz 415v.a.c.
Rated consumption 0.1 to 10Kw
Ambient temperature Upto 60 deg.C
Degree of protection IP 65as in DIN 40 050, P.2 or IP 55as in DIN IEC 34
Part 5 Insulation class F class

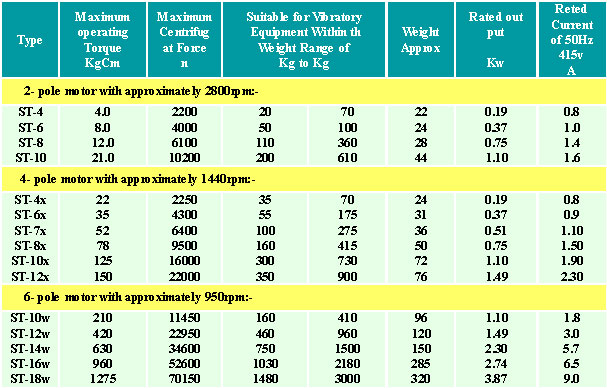

Technical Data of Vibrator Motor:
Type Maximum Operating
Torque KgCm
Maximum
Centrifugal Force
Suitable for Vibratory
Equipment within Weight
Range of Kg to Kg
Weight
Approx
Rated Output
KW
Rated Current
of 50Hz 415V
A
2-Pole motor with approximately 2800rpm:-
ST-4 4.0 2200 20 70 22 0.19 0.8
ST-6 8.0 4000 50 100 24 0.37 1.0
ST-8 12.0 6100 110 360 28 0.75 1.4
ST-10 21.0 10200 200 610 44 1.10 1.6
4-Pole motor with approximately 1440rpm:-
ST-4X 22 2250 35 70 24 0.19 0.8
ST-6X 35 4300 55 175 31 0.37 0.9
ST-7X 52 6400 100 275 36 0.51 1.10
ST-8X 78 9500 1600 415 50 0.75 1.50
ST-10X 125 16000 300 730 72 1.1 1.90
ST-12X 150 22000 350 900 76 1.49 2.30
6-Pole motor with approximately 950rpm:-
ST-10W 210 11450 160 410 96 1.1 1.8
ST-12W 420 22950 460 960 120 1.49 3.0
ST-14W 630 34600 750 1500 150 2.30 5.7
ST-16W 960 52600 1030 2180 285 2.74 6.5
ST-18W 1275 70150 1480 3000 320 3.87 9.0
