Piston Impactors

“STAR TRACE” Piston Impactors are developed to cater to applications Requiring linear pulsating forces.They are used to promote flow from small hoppers, Down feed Pipes & Chutes.

FEATURES
  • Easy Mounting.
  • Can be used in Hazardous areas.
  • Adjustable frequency and Vibration Amplitude.
  • Inexpensive/easy to install and maintenance free
  • Self cooling suitable for temperature upto 200 Deg.
  • Piston Impactors
PRINCIPLE OF OPERATION

Air Impactor Is otherwise called as Pneumatic Piston Oscillator. Piston is made to Oscillates by the changing Direction of flow. The Piston Mallets Continuously at one end while it is Cushioned at the other.

Impact produces considerable noise. But the Vibrator is run in short bursts and used for remote open air installations.

Since Impact has a high energy rate. It is effective in Dislodging stubborn material build-UPS. This type of impactor works very well where traditional methods of malleting and poking the material are used.

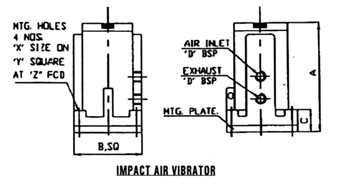

impact_air_vibrator

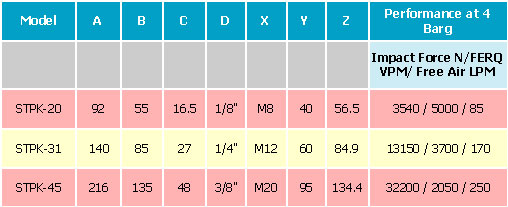

Model A B C D X Y Z Performance at 4 Barg
Impact Force N/FERQ VPM/Free Air LPM
STPK-20 92 55 16.5 1/8" M8 40 56.5 3540/500/85
STPK-31 140 85 27 1/4" M12 60 84.9 13150/3700/1700
STPK-45 216 135 48 3/8" M20 95 134.4 32200/2050/250
